RUGGEDTAB Android Industrial PC Panel

  • Excellent Performance

Equipped with 4-core ARM architecture A55 processor and Android 11 operating system

  • Rich interfaces

Rich interfaces, including multiple USB/RS232/LAN/HDMI and other I/O ports, easily meet various scenario requirements

  • True Industrial Grade Screen

IP65 front panel with FHD screen – 700nit

  • Wide Temperature and Voltage Range

12V standard through to 9-36V industrial vehicle. Wide voltage and temperature design, can operate normally even under external voltage fluctuations or in extremely hot or cold conditions

  • 24×7 Operation

Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life

  • Warranty

2-Year Warranty

Price (RRP/Excl GST):

$945.00$1,260.00

SKU:RT-PPC15R

Description

This device is equipped with a reliable ARM-based Rockchip processor and the latest Android 11 operating system. It’s a cost-effective, stable, and user-friendly solution for industrial needs. The device has a fully enclosed design, fanless cooling system, HMI, rich I/O interfaces, international Wi-Fi, and versatile installation options that meet industrial performance and quality standards, making it ideal for various industrial settings like production workshops, automation equipment, and monitoring systems.

The screen provides exceptional imaging and visual clarity, while the front panel is rated IP65 to safeguard against water and dust. With its highly responsive touch feature, users can easily input data, rotate images, move files by dragging and dropping, and zoom in using two or more fingers.

Industrial computer PC panels offer many advantages over traditional computers. They are specifically designed to withstand the harsh conditions of industrial environments, such as high temperatures, humidity, dust, and vibration. These types of computers are built with durable materials, including metal or plastic, that are resistant to corrosion and can withstand heavy use.

Moreover, industrial computer PC panels are highly versatile, offering a wide range of input/output interfaces, such as USB, Ethernet, serial, and HDMI, which can be used to connect to various industrial equipment and sensors. They can also be customized to meet specific industrial needs, such as size, power consumption, and processing power.

Another advantage of industrial computer PC panels is that they are highly reliable and require minimal maintenance. They often come with built-in cooling systems, such as fans or heat sinks, that help dissipate heat and prevent overheating. Additionally, they are designed with secure, industrial-grade operating systems that are less prone to malware and hacking.

Overall, industrial computer PC panels are a cost-effective, stable, and user-friendly solution for industrial needs, providing exceptional performance, durability, and versatility that are essential for various industrial settings, such as production workshops, automation equipment, and monitoring systems.

Additional information

PC screen model

RUGGEDTAB 10" Android, RUGGEDTAB 15" Android

Appearance

Dimensions: 257.2×170×45.95mm
Weight: 1.2kg

Display: Size: 8 or 10.1 inch, resolution: 800×1280, brightness: 700cd/㎡ Touch Panel 10 PCAP, G+G

Ports: SIM card *1 USB 3.0 *2, USB 2.0 *2 DC 12V4A *1 ∮3.5mm Standard Earphone jack *1 RJ45 *2 (10/100/1000M adaptive) HDMI *1

Optional: Extensive Slot SATA

Optional: Phoenix Terminal (External charging)

Optional: TPM (Hardware reservation)

Performance

Processor: ARM Quad-Core Processor
Operating System: Android 11
Memory+Storage: 4GB+64GB
Power: Adapter (Input AC 100V-240V 50Hz/60Hz, output DC 12V/4A)

Wireless

WiFi: 802.11 (b/g/n) Standard WiFi antenna
Bluetooth: Bluetooth 4.0

Ruggedness

Temperature: Working temperature: -20 °C to 60 °C Storage temperature: -30 °C to 70 °C

Accessories

Standard

Adapter, PPC hook assembly, WiFi antenna

In the box

Standard device to ordered specifications including the normal adapter, USB cable and written pen, Driver Disc, Mount kit and package

You may also like…

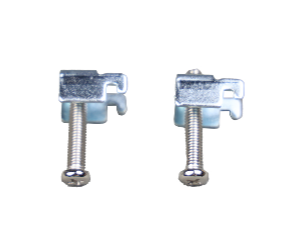

  • PC Hook Assembly

    Enquire or Buy

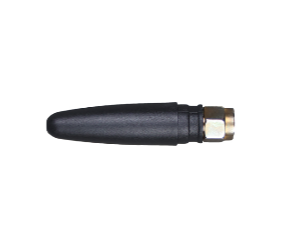

  • PC Antenna

    Enquire or Buy

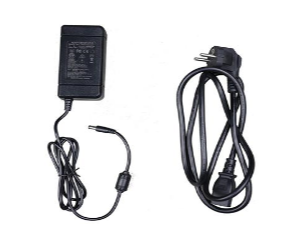

  • PC Adapter
